Continuous Carbonization Furnace Production Line
Unlock the potential of various agricultural and forestry waste materials with our Continuous Carbonization Furnace. From wood chips to coconut shells, bamboo chips to corn cobs, this innovative equipment facilitates the conversion of biomass into high-quality charcoal through a clean and efficient process.
How does it work? Within the gasifier, biomass undergoes pyrolysis gasification, reacting with a lean oxygen supply to produce combustible gas and biochar. This biochar finds applications in daily life, industrial processes, and agriculture production, making it a versatile and valuable resource.
What sets our Continuous Carbonization Furnace apart? Unlike traditional carbonization equipment, this furnace operates continuously, enabling 24-hour production cycles for maximum output. Its cutting-edge design ensures that the entire process is free from harmful gas emissions, making it an environmentally friendly choice for carbonization needs.
Traditional methods often fall short, releasing smoke and dust into the environment, posing health risks and violating environmental regulations. In contrast, our furnace employs circular combustion technology to recover and purify combustible gases like carbon monoxide and methane, mitigating pollution while maximizing efficiency.
With its ability to meet both production demands and environmental standards, our Continuous Carbonization Furnace represents a significant advancement in sustainable carbonization technology. Join us in embracing a cleaner, greener future with biomass-derived charcoal production that’s as efficient as it is eco-friendly.
Specifications
| Model | MJT-500 | MJT-1000 | MJT-2000 | MJT-3000 |
| Reactor Structure | Dual Cylinder | Dual Cylinder | Dual Cylinder | Dual Cylinder |
| Reactor Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Input Capacity | 300-500KG/H | 800-1000KG/H | 1500-2000KG/H | 2500-3000KG/H |
| Feedstock size | <20mm | <20mm | <20mm | <20mm |
| Feedstock moisture | <15% | <15% | <15% | <15% |
| Charcoal output ratio | 28-35% | 28-35% | 28-35% | 28-35% |
| Working Method | Fully Continuous | Fully Continuous | Fully Continuous | Fully Continuous |
| Fuel Consumption | 35-50m³ Natural Gas for initial Heating | 40-60m³ Natural Gas for initial Heating | 60-80m³ Natural Gas for initial Heating | 80-100m³ Natural Gas for initial Heating |
| Land required | L35*W12*H6m | L35*W12*H7m | L45*W15*H7m | L45*W15*H7m |
Application Material
Metal Can Paint Removal：
Within an oxygen-deficient environment, the material undergoes heating to a precise temperature and is maintained for a specific duration. This controlled process effectively decomposes paint, coating, plastic coatings, and oil stains into volatile gases and carbon slag through heat, ensuring complete separation and removal from the metal surface.
Experience the efficiency and effectiveness of our Metal Can Paint Removal system, engineered to streamline metal surface treatment and facilitate the effective recycling of metal objects. Say goodbye to stubborn coatings and stains, and hello to a pristine metal surface ready for reuse or further processing.
All kinds of biomass material: Fruit Husk,Wood Scraps, Sugarcane Bagasse, and Crop Stalks,
Friut Husk—Rice husk, Coconut shell, Peanut shell/ Groundnut shell, Sunflower seed husk/shell, Palm kernel shell, Walnut shell, Almond shell, Pistachio shell etc.
Wood Scraps—Wood sawdust,Forest farm & furniture factory scraps, Wood shavings, Wood chips, Tree branch, Bamboo scraps, Sugarcane bagasse, Distillers grains, Coffee grounds, coco husk chips, Waste from beer breweries, Empty Fruit Bunch etc.
Crop Stalks—Plants straw, Crop residues, Soybean straw, Wheat straw, Cotton straw, Corn stalks, Sorghum stalk, Maize Cob/ Corncob, Sorghum husk/ shell/hull, Potato grass, Dead leaves etc.
Biomass particles no more than 50mm and moisture content less than 20% can be directly carbonized into this carboning kiln.
Raw materials with large size (above 50mm), such as branches, bark, coconut shell, straw, hemp stalk and tobacco stalk,need to be crushed firstly.If the moisture content is more than 20%, we need to choose a dryer to cooperate with the production process.

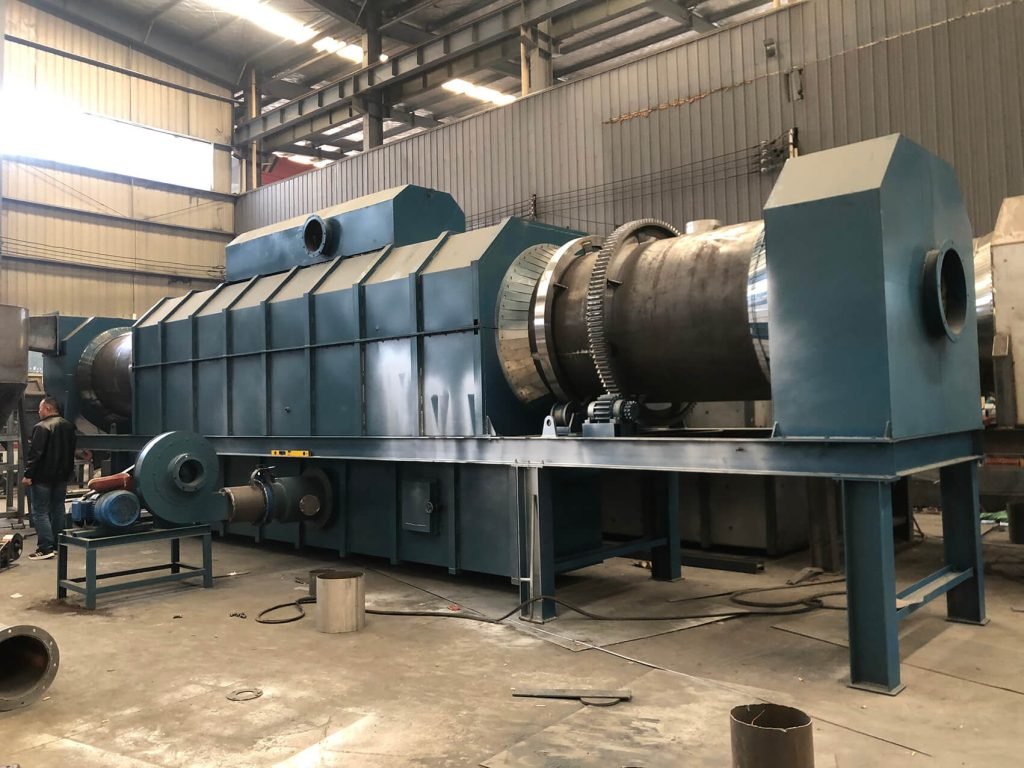

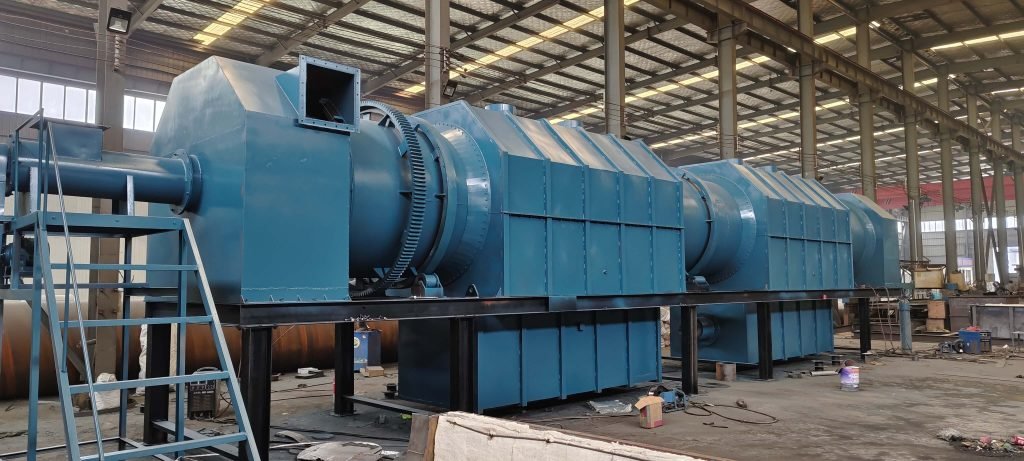

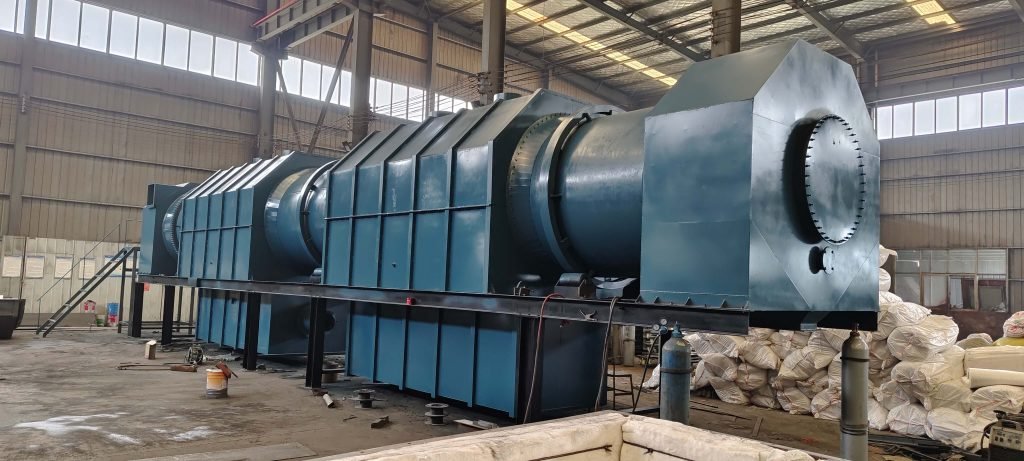

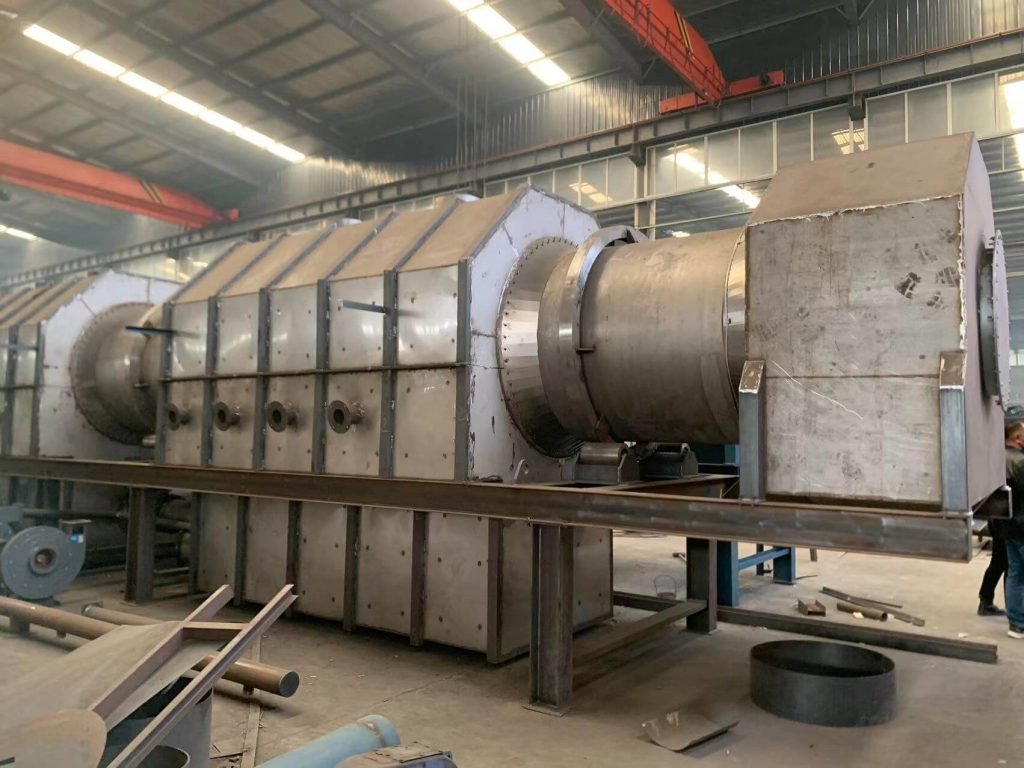

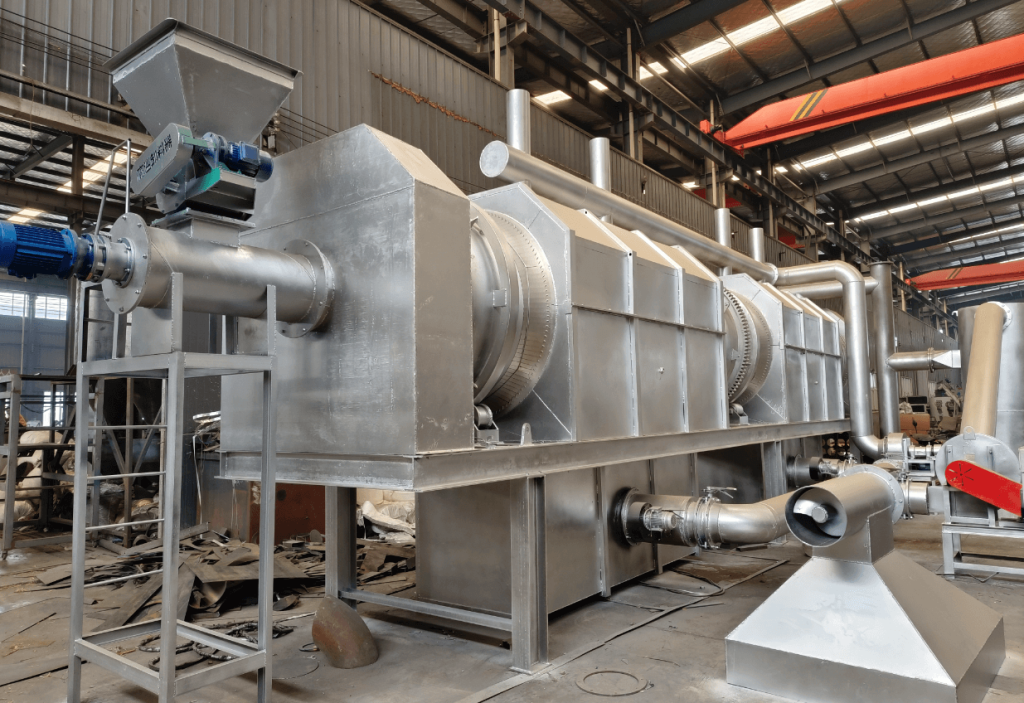

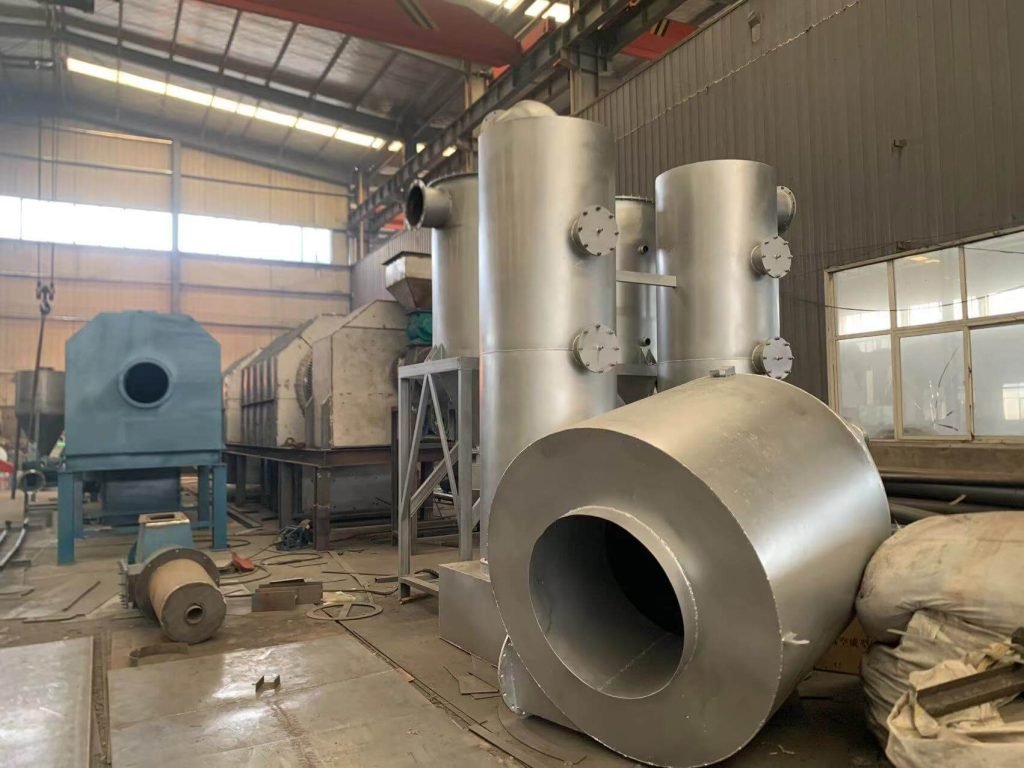

Product Display
